A turnkey and ready-to-use device manufactured by an expert in metering technology
• Modularity and Adaptability to process developments
• Reliability and Safety.
2 types of plug-and-play
dosing solutions:
• Frame-mounted pump(s)
• Chemical injection

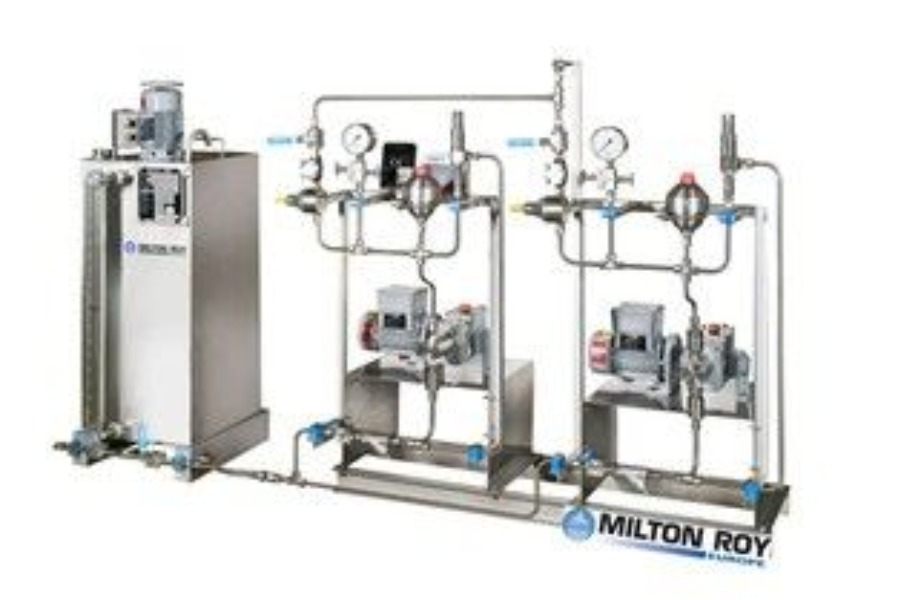

package with storage tank
Compact, modular and selfcontained
metering solutions.
DosaSkid are ideal for preparing,
storing and injecting chemical
solutions
Tubing
• 316L stainless steel or C-PVC
Storage tank
• 316L stainless steel or HDPE
• Tubing: 316L stainless steel or C-PVC
• Connections and tubing: OD 1/2”
• Suction line comprising for each pump:
> 1 isolating valve
> 1 Y-filter: protection and improvement of dosing pump lifespans
> 1 battery limit inlet connection
• Suction connection: connection of the suction line of the modules
• Discharge line comprising for each pump:
> 1 safety valve: protection of piping and dosing pumps
> 1 isolating valve: simplified maintenance without production stoppage
> 1 pulsation dampener: smoothing of the injection flow and cavitation prevention
> 1 manometer with manifold: operating pressure measurement and display of pulsation damper efficiency
> 1 back-pressure valve if required by the service pressure: cavitation prevention
• Accessories: characteristics determined based on the application
