“GI” INSERT TYPE HOLDERS FOR AXIUS, SRX AND SRL RUPTURE DISCS :
DESCRIPTION

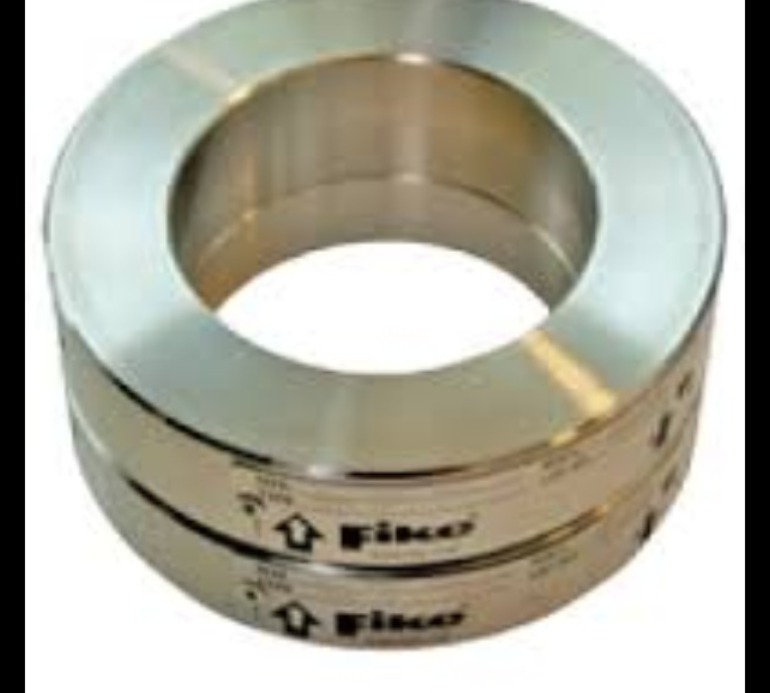

Fike’s “GI” insert rupture disc holder consists of a base (inlet) and a holddown flange (outlet). “GI” holders
fit between most standard companion flanges within ANSI, JIS, DIN, and ISO bolt circle configurations.
Additionally, 300 series stainless steel sideclips are provided for preassembly so that the rupture disc may
be installed at a workbench or some other convenient location. Once the disc is in place the assembly may
then be installed into the line, minimizing the chance of damage to the rupture disc.
FEATURES OF “GI” RUPTURE DISC HOLDERS
• DiscLoc™ locator helps prevent inverted disc installation
• Serrated gasket faces per ANSI B16.5 for improved gasket sealing
• Optional O-Ring disc seal for reduced emissions
• Optional NPT sizes available for installation of pressure gauges. Consult factory for more information
• High profile or “tall” holddowns are available for XL and 1.50 IN (DN40) SRL models and are
recommended when installed directly under relief valves
MATERIALS OF CONSTRUCTION
Holders are available in carbon steel, 316 SST. Examples of other materials available on request are Hastelloy®, Inconel®, and Monel®.
Tantaline Surface Alloy is an available option for certain models and sizes. Please refer to data sheet R.1.48.01 for more information.
