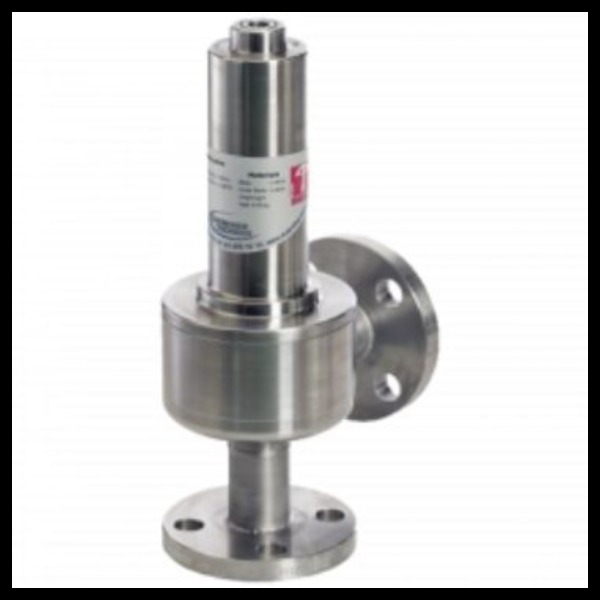

Spring-loaded, automatic medium-pressure reducing valve in angle design for regulating pressures.
Design: Angle pattern design
Sizes: DN15 – DN25, ANSI 1/2 – 1″
Pressure class: DIN PN16, ANSI cl.150
Inlet pressure: max. 16 barg
Setting range: 0.3 barg – 5 barg
Features :
1.Self-operated pressure reducing valve
2.Compact angle-body construction
3.Suitable for corrosive and hygienic media
4.Stable downstream pressure control
5.Available with sanitary clamp connections
6.Suitable for gas and liquid applications
Material Options
The regulator is available in:
1.Stainless Steel SS316L for standard industrial use
2. Hastelloy for aggressive or corrosive media applications
Design: Angle pattern design
Sizes: DN15 – DN25, ANSI 1/2 – 1″
Pressure class: DIN PN16, ANSI cl.150
Inlet pressure: max. 16 barg
Setting range: 0.3 barg – 5 barg
Features :
1.Self-operated pressure reducing valve
2.Compact angle-body construction
3.Suitable for corrosive and hygienic media
4.Stable downstream pressure control
5.Available with sanitary clamp connections
6.Suitable for gas and liquid applications
Material Options
The regulator is available in:
1.Stainless Steel SS316L for standard industrial use
2. Hastelloy for aggressive or corrosive media applications
