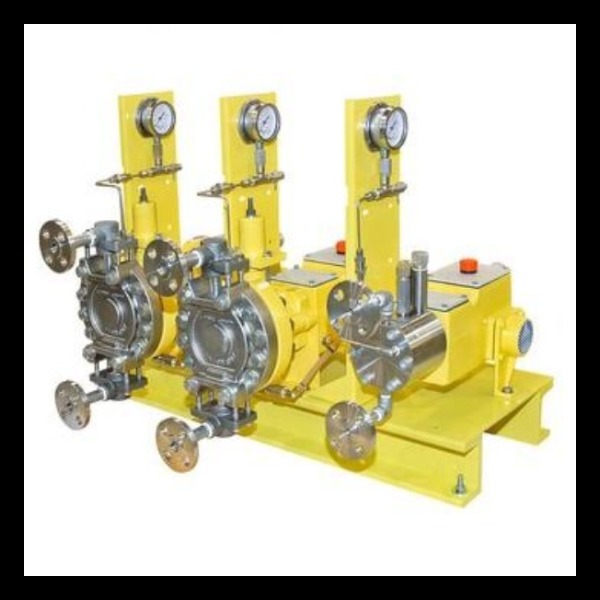

MILROYAL D Triplex with HPD Liquid End :
The MILROYAL D is a robust industrial
duty metering pump for use in critical
processes in oil and gas, chemical and
hydrocarbon processes, water and waste
treatment, and in mos t industries where
chemical injection is required.
The MILROYAL design is modular thus allowing
it to accept a variety of liquid ends and other
options that perfectly tune it to process
requirements. Multiplex configurations
provide even greater application flexibility.
General Specifications
Drive
Polar crank design - all moving parts submerged in oil.
Liquid Ends Available
High Performance Diaphragm (HPD) or Packed Plunger
Multiplexing
Up to 6 pumps driven by one motor. Limited to a maximum of 25 HP.
Consult applications engineering concerning capabilities for a specific application.
Maximum Performance Ratings (per head)
53 gph @ 70 psig (200 l/h @ 5 bar) to
0.5 gph @ 3, 000 psig (1.9 l/h @ 207 bar)
Capacity Control
Manual micrometer standard; Electronic stroke length control or variable speed optional
Accuracy
±1.0% over 10:1 turndown ratio
Weight with Motor (simplex; approximate)
HPD = 195 lbs. (88 kg); Packed plunger = 95 lbs. (43 kg)
