Multi-Function Valves:

Two types of MFV’s are available.
• Up to 150 PSI working pressure
• Up to 250 PSI working pressure
• Two types of O-rings MOC available
• Polyprel
• PTFE
• Based on the Pressure and Application MFV
shall be selected by the user.

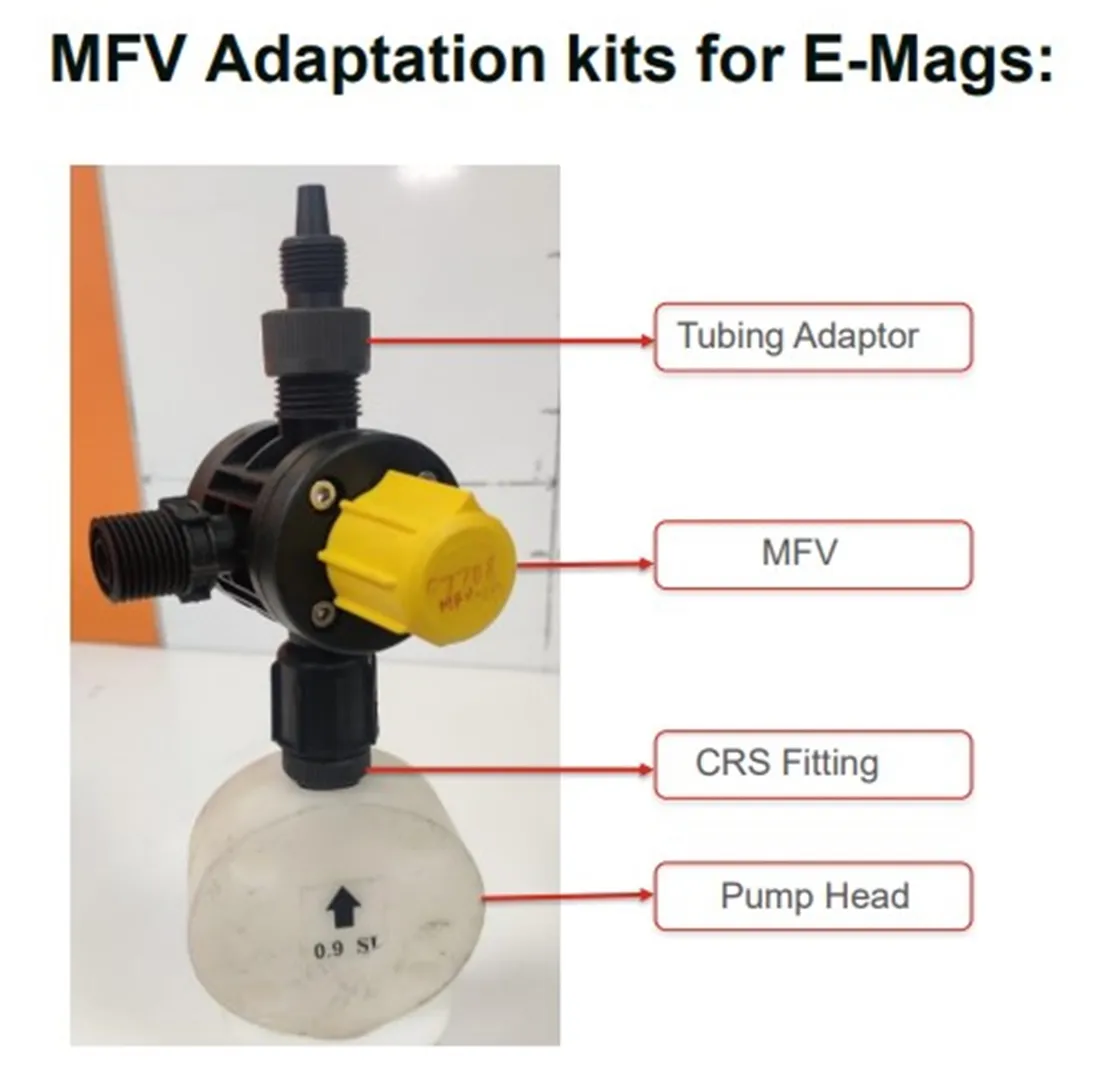

MFV adaptation kit contains:

1. CRS Fitting – 1 no.
2. Tubing adapter – 1 no.
CRS fitting is used to connect pump
head with MFV
Tubing adapter is used to connect
MFV with tubing for process line.
