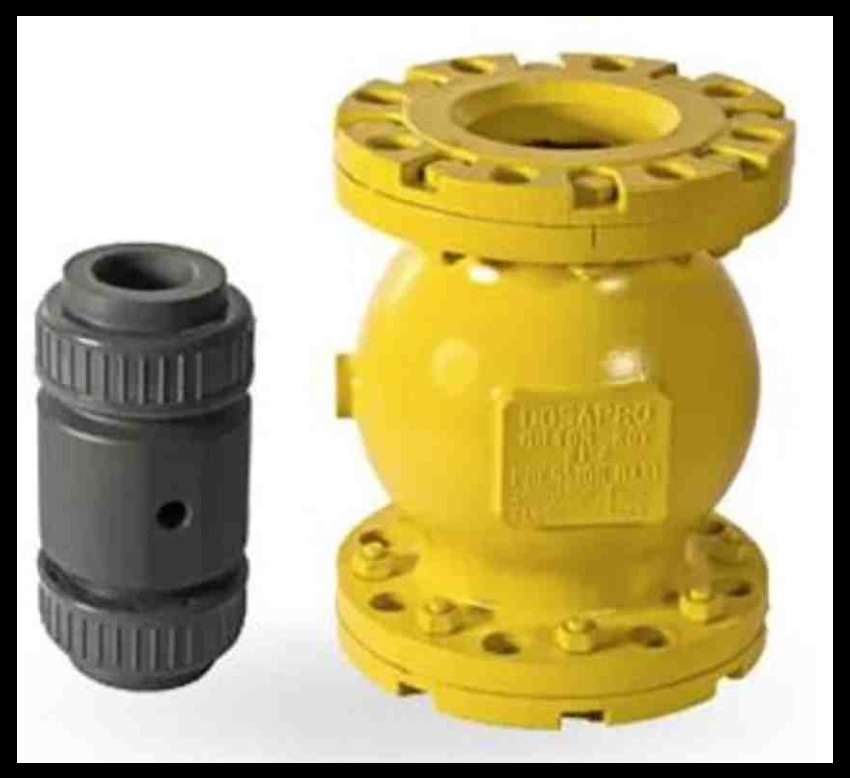

1 Full bore valves
2 Total sealing for powders, liquids, pastes and slurries without glands
3Choice of materials of construction : PVC, Aluminium, Cast Iron
4 Sleeves available in natural rubber, neoprene
5 PVC : Sizes DN20 to DN40
6 Cast iron : Sizes DN50 to DN200
7 Aluminium: Sizes DN100 to DN300(Imported)
Applications :
Waste water, slurries
Sludge extraction
Pneumatic conveying (powdered products, granules,
cereals)
Cleaning water or pulp transfer (sugar refineries)
A RUBBER SLEEVE (B) IS FITTED IN THE
BODY(A)
WHEN AIR PRESSURE IS APPLIED
BETWEEN BODY AND SLEEVE, THE VALVE
CLOSES
