HAD Pump

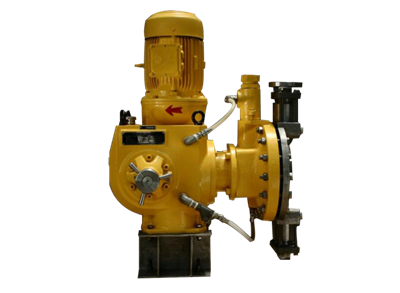

MAXROY - Series

- Low pressure industrial pump

- Single diaphragm (standard)

- Double diaphragm with rupture detection facility (optional)

- Optional automatic control (stroke length/speed)

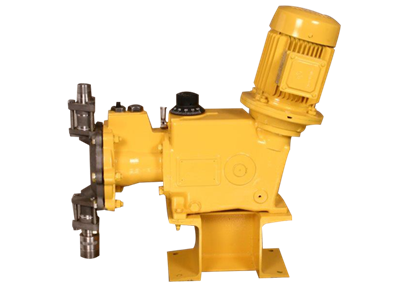

PHL - Series

- Conforms to API 675 Standards

- Hydraulically driven high performance diaphragm liquid end

- Steady State Accuracy of +1% if rated flow

- Repeatability +3%

- Linearity +3%

- Turn Down Ratio 10:1

- Accurate flow adjustment through 10 Turn Knob rotation

- Amplitude modulated positive stroke return by Sliding Crank mechanism

- Robust Cast Iron construction

- Stroke adjustment : Can be adjusted while pump is running or stopped

- Oil bath lubrication for all drive components

- High precision Check Valves

- Maximum Liquid Temperature upto 150'C

- Capacity adjustment by

- Lockable micrometer stroke adjustment(Std)

- Variable Speed Drive (Optional)

- Liquid end Material of Construction in SS-316, other materials on request

- End connections available in both threaded & Flanged versions

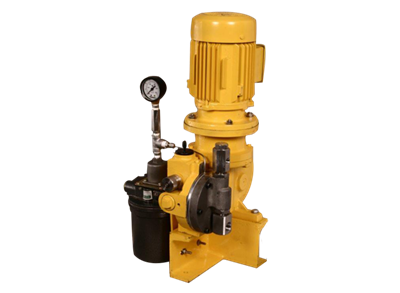

MROY - Series

- An innovative technology concept

- Low and high pressure versions available

- Single diaphragm (standard)

- Double diaphragm with rupture detection facility (optional)

- Optional automatic control (stroke length/speed)

- Conforms to API 675 standard

- Long life diaphragms

- Conforms to API 675 standard

- Available in duplex and triplex versions
